Dryer for Latex Printer, Drying Machine Heating System of Latex Printing Machine

Inkjet Printing Machines

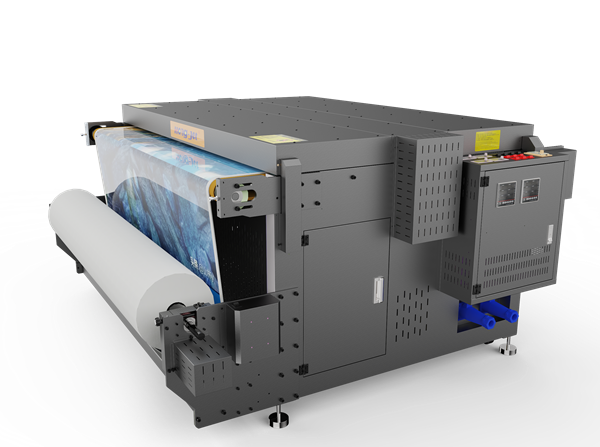

Dryer for Latex Printer

* The dryer for latex printer applies the mesh belt transmission to transmit material fast.

* Intelligent temperature-controlled hot air circulation drying system, high energy efficiency.

* The latex printer dryer is equipped with independent smoke extracting purification system, its energy-saving and eco-friendly ideology.

* It provides super adhesion and friction resistance.

Introduction to Dryer for Latex Printer

Product Features
The drying machine for latex printer applies the mesh belt transmission to make the material transmission much fast and convenient; with the intelligent temperature-controlled hot air circulation drying system, it can achieve high energy efficiency; the latex printing dryer is equipped with independent smoke extracting purification system, energy-saving and eco-friendly ideology.

Heating Mechanism
This drying equipment provides heat through the heating element. It circulates the hot air into the drying chamber through a fan, and transfers the heat evenly to the printing media through hot air conduction and convection to evaporate the moisture, so that the latex ink and the printing media can be fully fused together to form a perfect picture quality. At the same time, it provides super adhesion and friction resistance in order to meet the nearly demanding functional requirements of different users.

Parameters of Latex Printing Dryer

Model No.	1901	1902	602
Transmission Method	Mesh Belt Transmission	Mesh Belt Transmission	Mesh Belt Transmission
Rated Voltage	Maximum Power 8KW Working Power 5KW	Maximum Power 15.8KW Working Power 9.6KW	Maximum Power 8KW Working Power 5KW
Drying Mode	Intelligent Temperature-controlled Hot Air Circulation Drying System	Intelligent Temperature-controlled Hot Air Circulation Drying System	Intelligent Temperature-controlled Hot Air Circulation Drying System
Temperature Range	Room Temperature ~150°C	Room Temperature ~150°C	Room Temperature ~150°C
L, W, H of Drying Tunnel	2.3M1.73M1.12M	2.3M1.95M1.12M	1.62M1.13M1.12M
Overall Dimension	2.55M1.85M1.41M	2.55M2M1.41M	1.75M1.25M1.34M
